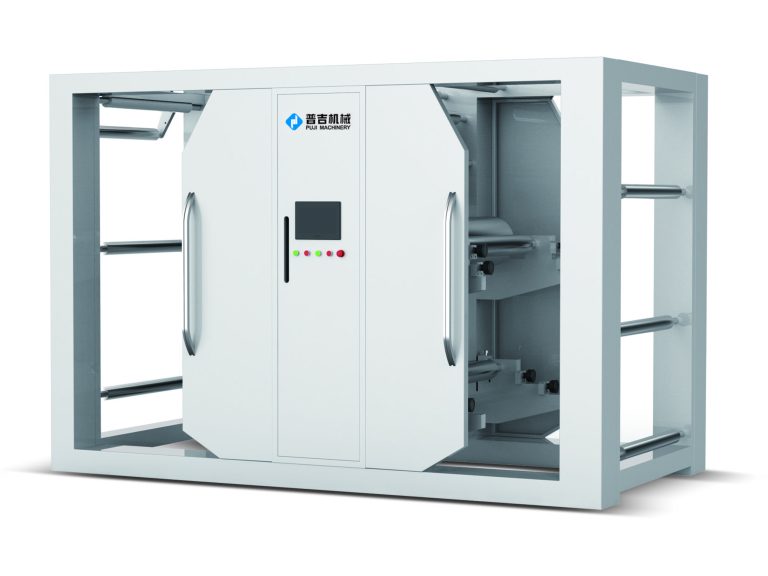

Planetary Stack Type Flexo-graphic Printing Machine
Substrate Material:
Plastic film, Roll paper, Non woven fabric, PP woven sack, Thin film and all kind of soft package roll material.
| Model | BFYT-C-600-3500mm |
| Max Material Width | 600-3500mm |
| Max Printing Width | 570-3470mm |
| Printing Length | 320-1000mm |
| Printing Color | 2-12 color |
| Mechanical Speed | 50-200m/min |
| Printing Speed | 50-180m/min |
| Printing Unit Composition | Ceramic anilox roller, Chamber doctor blade, Ink pump, Printing cylinder, Pressure roller |
| Voltage | (3P-380V-50Hz) |
| Weight | Depends On Model |
| Dimension | Depends On Model |
| Optional Devices | 1. Servo motor drive, Full automatic computer registration.
2. Corona treatment. 3. Slitting device. 4. Automatic non-stop unwinding & rewinding. 5. UV Device. |
